M3TR

Rohde & Schwarz 사가 제조한 m3tr 이란 무선기를 소개 합니다.
당장, 등에 메고 삼악산 에라도 올라보고 싶네요.

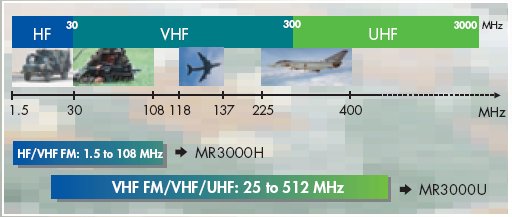

mr3000h 1.5 ~ 108 MHz(수신 500 MHz 까지)
mr3000u 25 ~  500 MHz  이렇게 두종류가 있네요. 이중 아무래도..아마추어무선과 관련이 더 많은 mr 3000h 쪽으로 눈길이 더 많이 갑니다. 이후 이내용을 옮겨 봅니다. 과연 가격은 얼마나 할래는지...
  rohde & shwarz에서 옮겨 왔습니다.

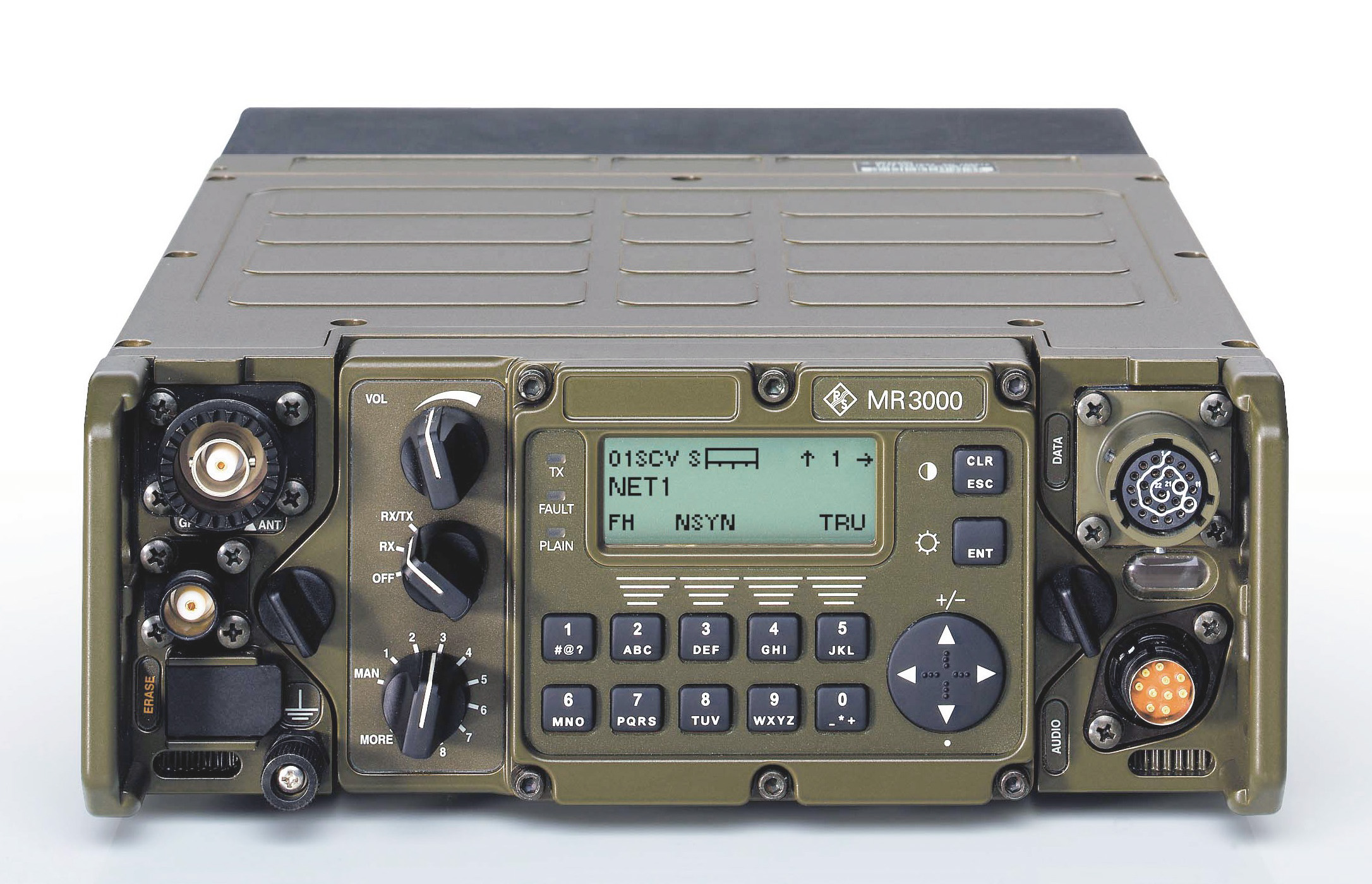

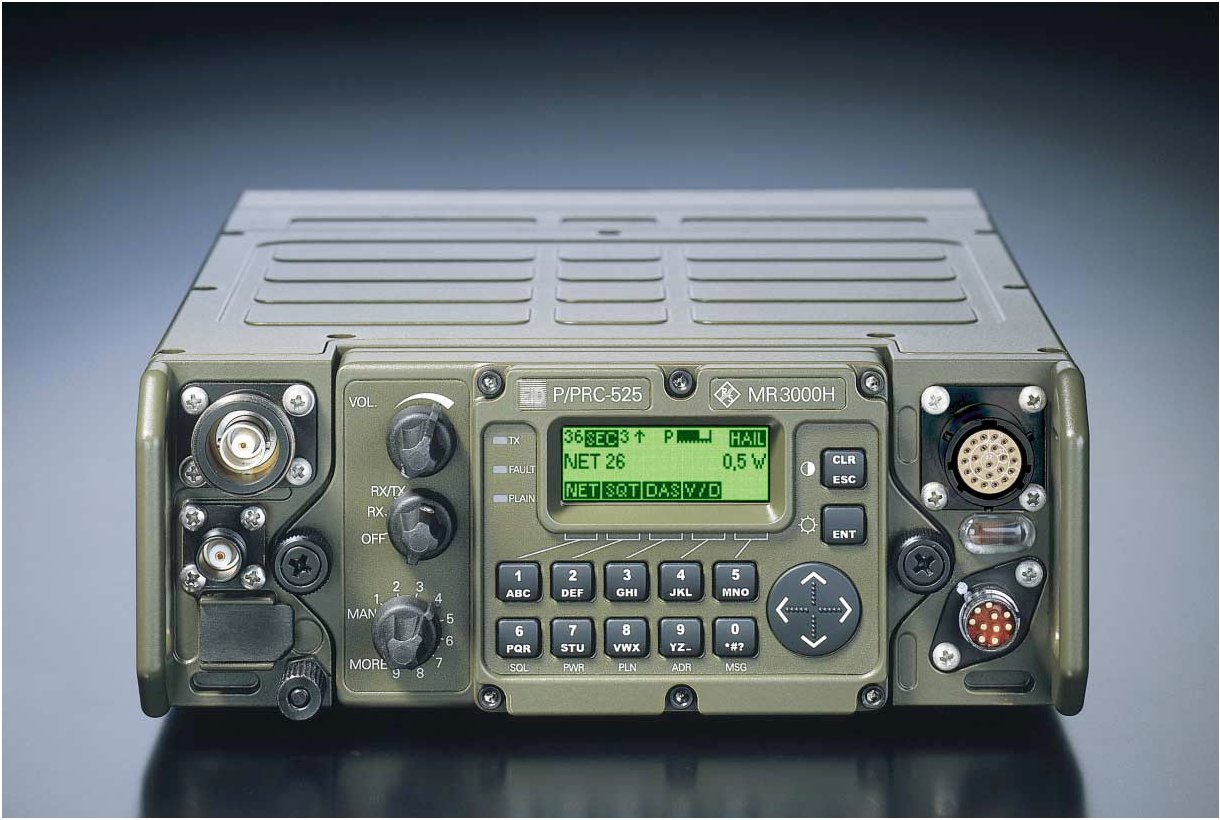

Advanced HF/VHF Tactical Radio R&S MR3000H

The R&S MR3000H belongs to a new family of high-performance digital radios covering the HF and VHF/FM band in a single unit.

Thanks to different high-speed data modes and protocols as well as different antijam modes for HF and VHF/FM, it perfectly integrates into tactical communication networks.

The radio is software-configurable and reprogrammable including pre planned product improvement (P³I).


All members of the R&S M3TR family are based on one mechanical platform, with a common logistic concept and one man machine interface (MMI).

Features

◆ Multiband capability (1.5 MHz to 512 MHz with external devices)
◆ Multiwaveform capability
◆ High data rate up to 64 kbit/s for data and video
◆ Software-configurable and upgradeable (P³I)
◆ Selective links in one net
◆ Low volume/weight
◆ Power saving mode
◆ Integrated GPS and position report

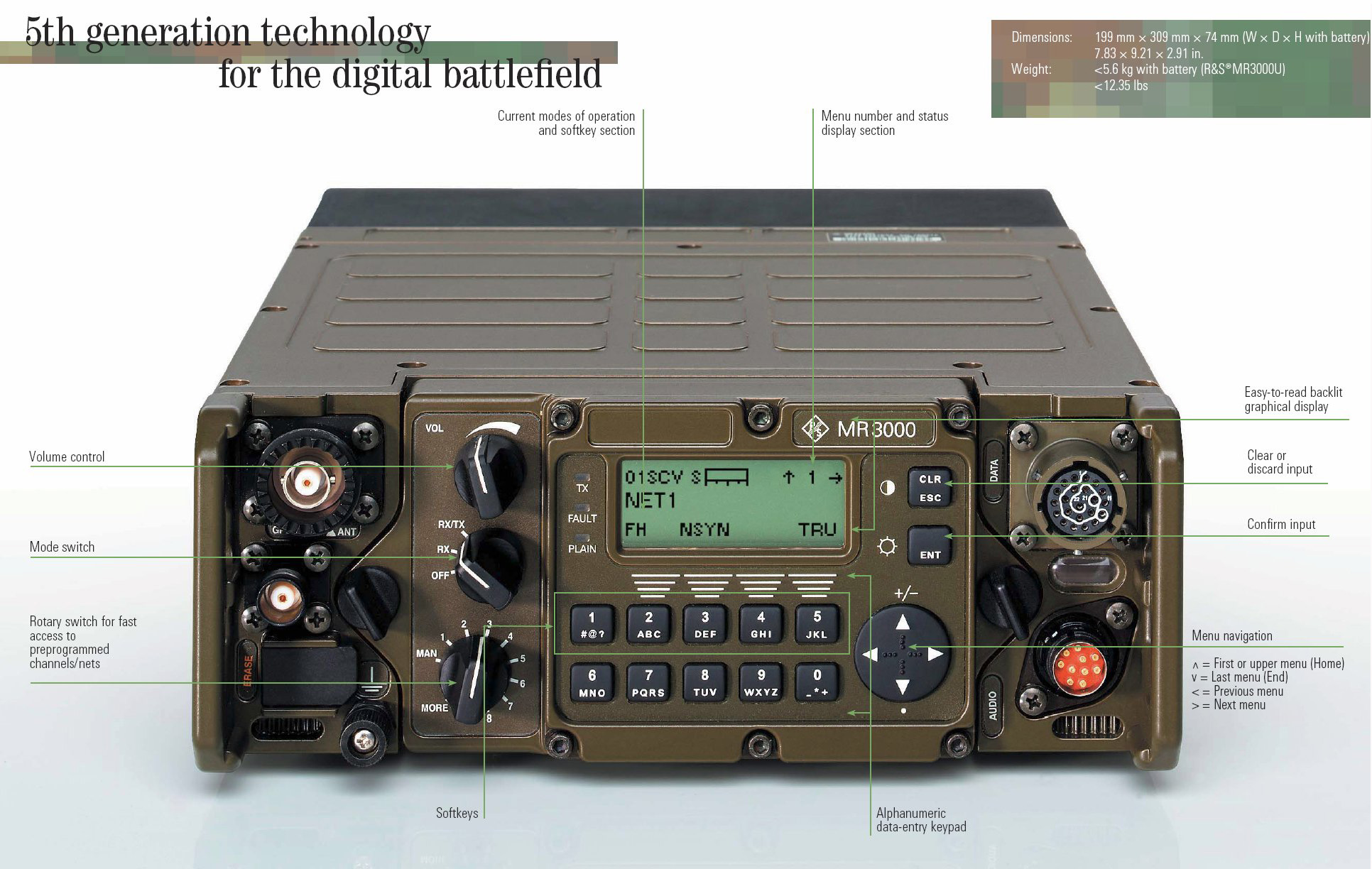

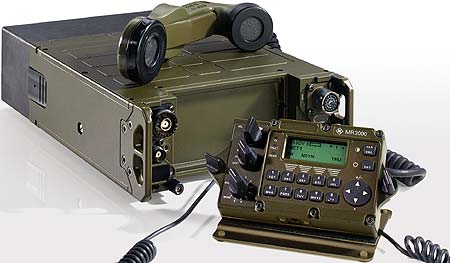

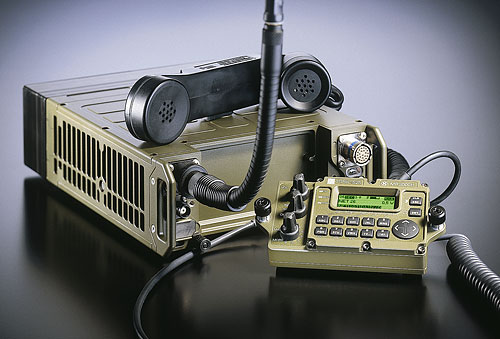

◆ Removable front panel for flexible use and integration
◆ User-friendly MMI


General specifications

Frequency range

TX: 1.5 MHz to 108 MHz
RX: (100 kHz), 1.5 MHz to 512 MHz

Channel spacing
   HF
   VHF/FM

1 Hz
6.25 kHz, 8.33 kHz, 12.5 kHz, 25 kHz

Frequency stability

standard: ±0.5 ppm

Presets

100 (10 available on rotary switch)

Modulation

J3E (USB, LSB), A3E (AM), H3E (AME), F1B/F1D (FSK), A1A (CW), F3E (FM)

Operating modes

SSB/FM/AM, frequency hopping (VHF/FM), frequency hopping (HF),
clear voice/data transmission (FF mode), secure voice/data transmission (FH mode, DFF mode), test (BITE), remote control, GPS mode (time, position), erase

Antenna tuning
   HF
   VHF

built-in, automatic, silent tuning
built-in matching filter

Test (IBIT)

module level; manually initiated BIT continuous monitoring

HF transmitter specifications
   RF output power

   Power reduction protection
   Carrier suppression
   Sideband suppression
   Intermodulation products
   Harmonic suppression

1 mW, 0.1 W, 0.2 W, 0.5 W, 1 W, 2 W, 5 W, 10 W, 20 W PEP, FM average,AM PEP
high VSWR, high temperature
>50 dB below PEP (J3E)
>50 dB below PEP
>36 dB below PEP
>40 dB

HF receiver specifications
   Sensitivity (1.5 MHz to 30 MHz)

   Squelch

SSB: -117 dBm (0.3 µV) for 10 dB (S+N)/N (2.4 kHz bandwidth)
syllabic squelch, 150 Hz tone squelch, signal squelch, RSSI (relative signal strength indication)

VHF/FM transmitter specifications
   RF power output

   Power reduction protectionhigh
   Harmonics
   Spurious emission

1 mW, 0.1 W, 0.2 W, 0.5 W, 1 W, 2W, 5 W, 10 W, FM average, AM PEP
VSWR, high temperature
 -60 dBc
 -70 dBc

VHF/FM receiver specifications
   Sensitivity (30 MHz to 512 MHz)

FM: -113 dBm, 10 dB SINAD

Power supply
   Input voltage

14 V to 33 V DC
19 V to 33 V fully specified

Fast data modes (optional)
   HF modes (FF)

   VHF mode (FF)

STANAG 4285 waveform up to 3600 bit/s
STANAG 4539 waveform up to 12800 bit/s
R & S proprietary waveform up to 64 kbit/s

Automatic link establishment (optional for HF)
   Specifications

MIL-STD-188-141B, App. A

Voice processor (R&S SECOM only)
   Vocoder bitrate

HF: 1200 bit/s
VHF: 4800 bit/s

EPM (optional)
Frequency hopping modes
   HF
   VHF/FM
   Encryption

R & S SECOM-H
R & S SECOM-V
R & S SECOM embedded voice/data encryption

Environmental conditions
Temperature range (MIL-STD-810E methods 501.3 and 502.3)
   Operational
   Fully specified
   Storage
   Temperature shock
   Shock
   Vibration
   Waterproofness

   Sand and dust
   Solar radiation
   Icing and freezing rain
   Salt fog
   Low pressure (altitude)

   Humidity

   Fungus
   EMI
   Bench handling

 -40°C to +70°C
 -25°C to +55°C
 -40°C to +85°C
to MIL-STD-810E method 503.3
to MIL-STD-810E method 516.4
to MIL-STD-810E method 514.4
1 m immersion during 2 hours,
to MIL-STD-810E method 512.3
to MIL-STD-810E method 510.3
to MIL-STD-810E method 505.3
to MIL-STD-810E method 521.1
to MIL-STD810E method 509 .3
to MIL-STD810E method 500.3, proc. I+II
5000 m above sea level at <+35 °C
to MIL-STD810E method 507.3 (cycle5),
33 °C/63 °C, 75% RH, 15 days
to MIL-STD810E method 508.4
to MIL-STD-461
to MIL-STD810E method 516.4, proc.VI

Dimensions (W x H x D)

199 mm x 74 mm x 309 mm
(with battery pack)

Weight

<5.8 kg (with battery pack)

Accessories (optional)

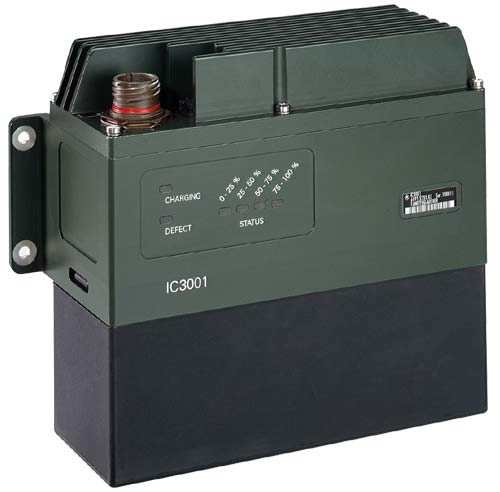

Handset, headset, battery charger, loudspeaker with external 3 W audio amplifier

External control units, data terminals
Data terminal (DT) for field use, fill gun, message handling PC software, mission planning PC software, remote control terminal, remote control software (installed on a PC) for remote control of the radio

Antennas
HF whip antenna 2.4 m, VHF whip antenna 1.5 m, short rod antenna VHF, long wire antenna, dipole antenna for VHF and HF range, other antennas on request

External amplifiers
50 W VHF power amplifier, 50 W VHF/UHF power amplifier, 150 W HF power amplifier

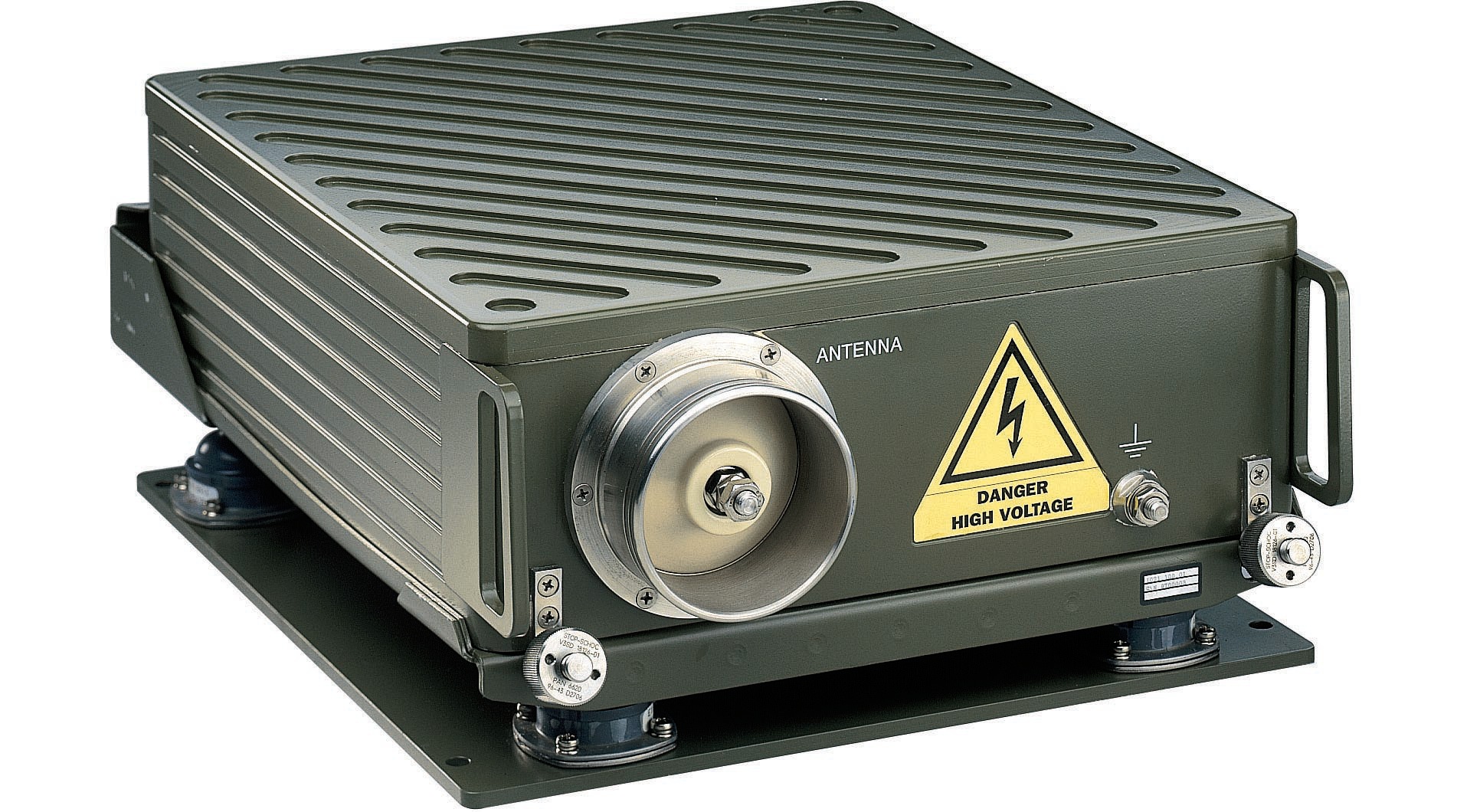

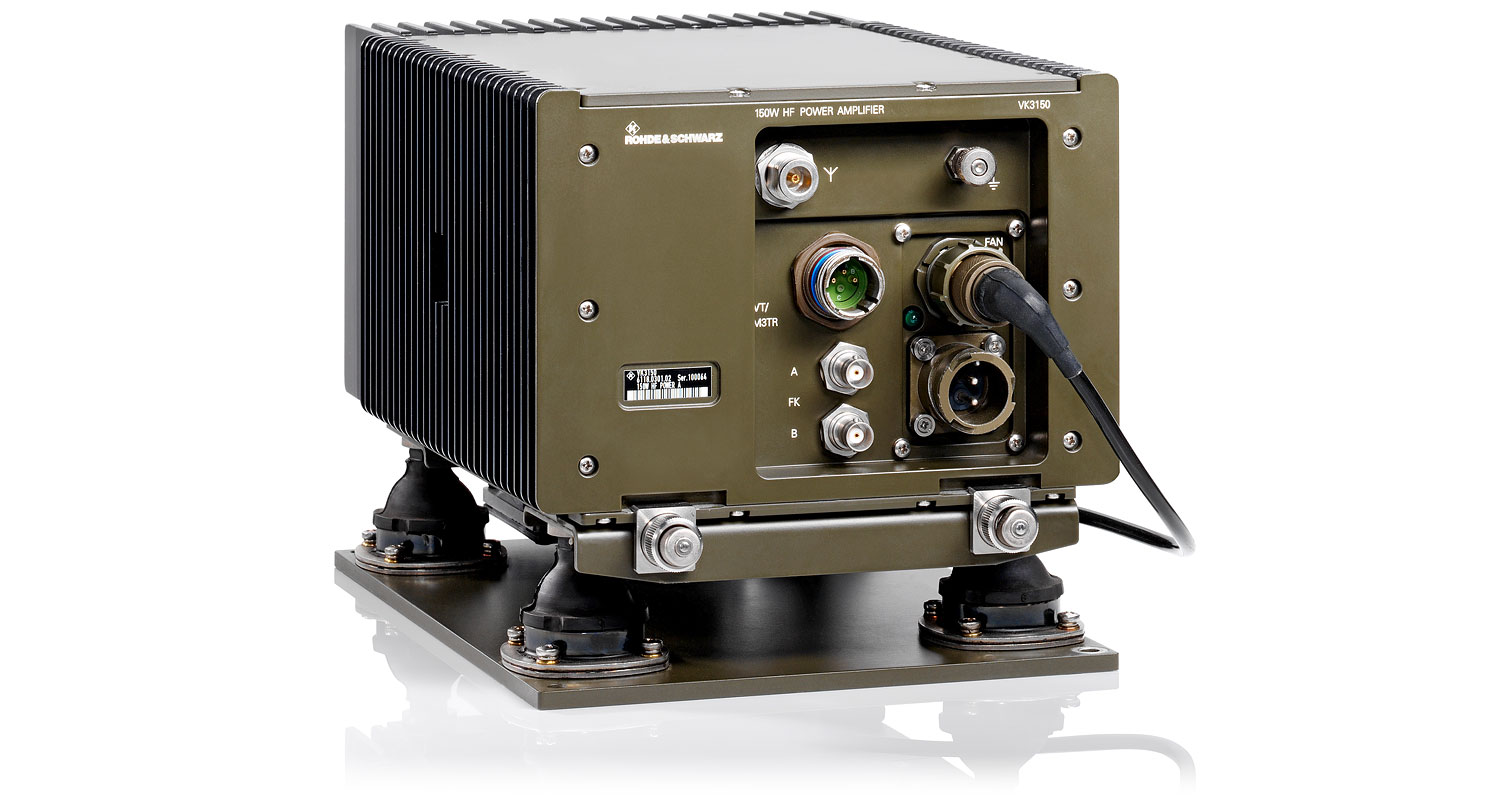

The Power Amplifier R&S VK3150 increases the HF output power of the R&S MR3000 manpack radios to 150 W PEP or 100 W average. The R&S VK3150 provides medium-power/medium-range communications links. Typical applications include mobile or base station installations for general-purpose HF SSB voice and data communications.
Continuous coverage is provided over the 1.5 MHz to 30 MHz frequency range. The power amplifier section is of broadband design and fully supports frequency-agile operation modes (automatic link establishment, slow frequency hopping).
When used with the automatic HF Antenna Tuning Unit R&S FK3150, the output of the R&S VK3150 is automatically matched to most rod and whip antennas and requires no special operator procedures.
Built-in self-test features permit operators or maintenance personnel to fully check the transceiver and associated power amplifier performance down to the module level. Fault conditions are displayed on the transceiver's front-panel display.
The RF drive requirements for full 150 W PEP or 100 W average are –2 dBm (±3 dB) from the associated receiver- transmitter.
The manpack R&S MR3000 therefore acts as an exciter for the power amplifier, avoiding the disadvantages of transceiver/ booster solutions with respect to unwanted emissions.
The HF power amplifier is mounted separately on an independent shockmount with room for proper air flow. This provides additional flexibility when installing tactical radio systems into vehicles.
The R&S VK3150 uses rugged tactical packaging and meets the same environmental specifications for temperature, shock, vibration, and submersibility as the rest of the R&S M3TR family components.

External antenna tuning units
Vehicular antenna tuning unit HF 150 W

Docking stations

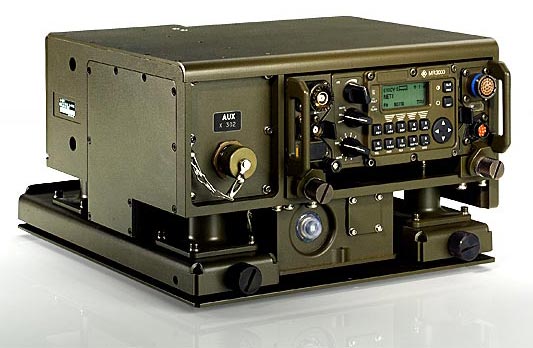

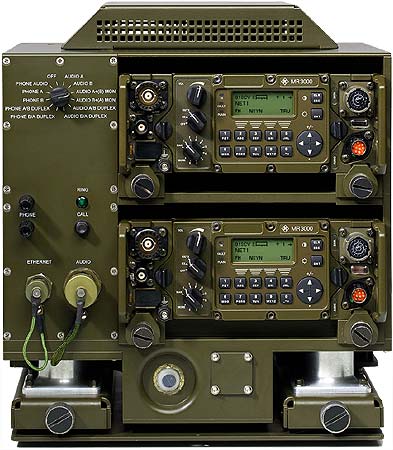

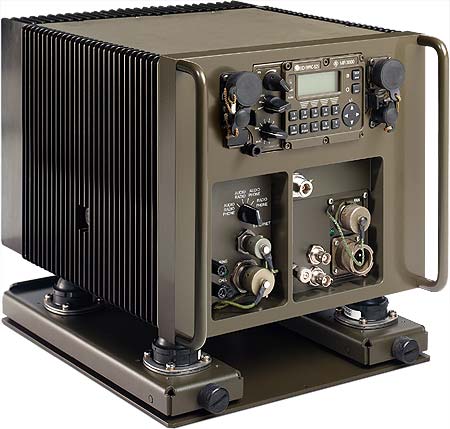

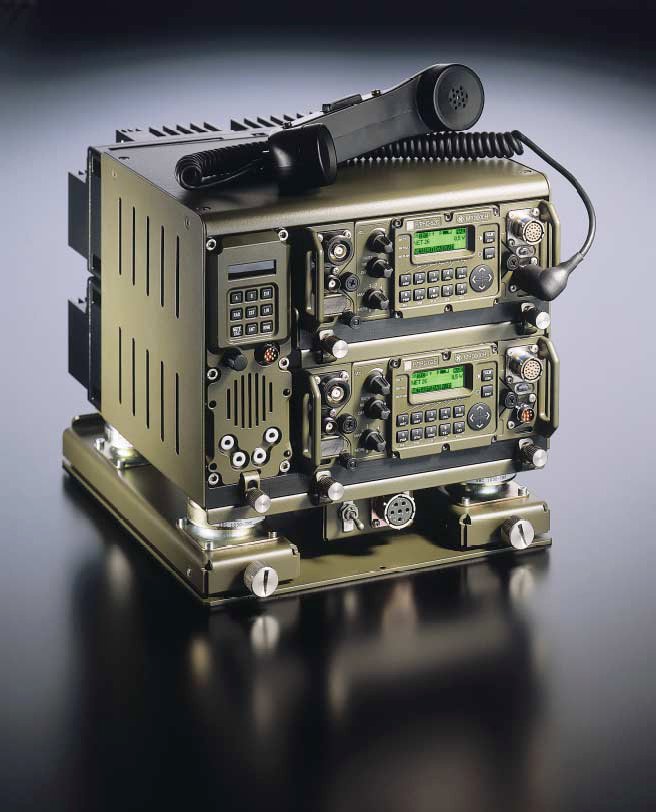

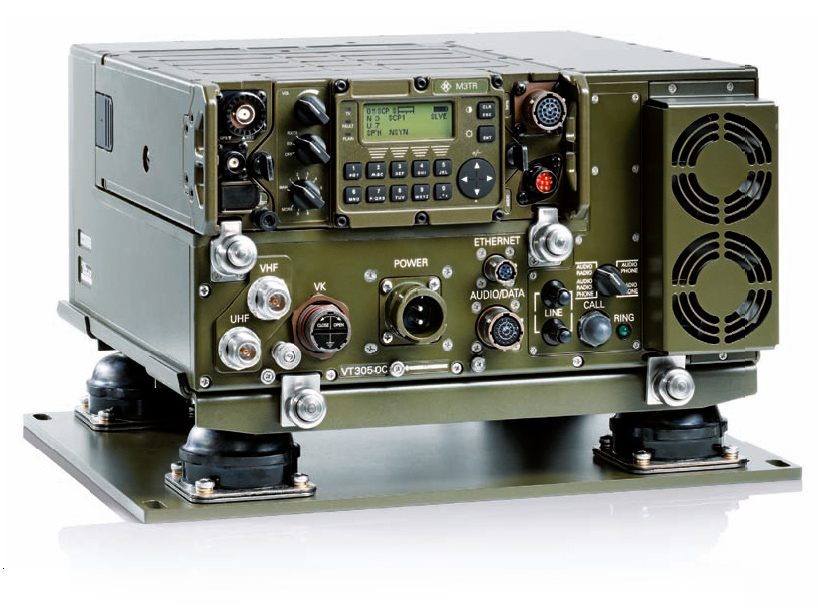

Docking station for one or two radios, one or two 50 W VHF power amplifiers and a switchbox (DDS)1) or auxbox (SDS)2)

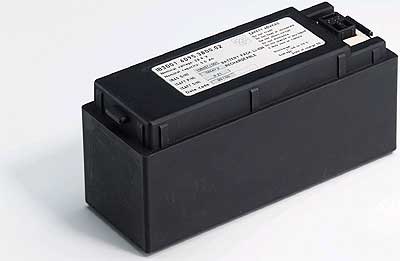

Batteries
   Li-Ion (rechargeable) or LiSO2 (primary)
Autonomy/capacity at +25 °C
   (FF-operation, duty cycle TX/RX/Stdby = 1:1:8)
   Li-Ion   VHF (5 W, FM): 22 h, HF (10 W, SSB): 14 h
   LiSO2   VHF (5 W, FM): 28 h, HF (10 W, SSB): 18 h

1) Double docking station.
2) Single docking station.
